OMG Exam OMG-OCSMP-MBI300 Topic 1 Question 2 Discussion

Choose the correct answer

A has three inputs I 1. I 2 and 13 and one output O, I1, I2. I3 and O are all of the same type A requires I1 or I2 to execute but I1 and I2 are mutually exclusive. I3 must be present tor A to begin.

Which activity diagram fragment correctly shows A with its three inputs and one output?

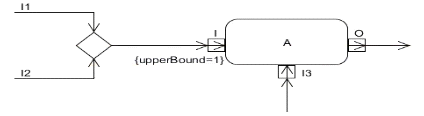

A)

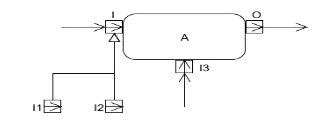

B)

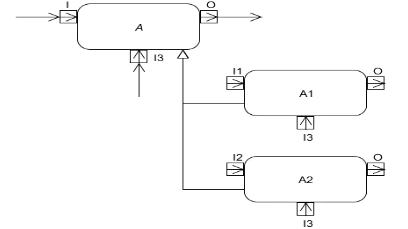

C)

D)

E)
