Nokia Exam 4A0-101 Topic 6 Question 7 Discussion

Actual exam question for Nokia's 4A0-101 exam

Question #: 7
Topic #: 6

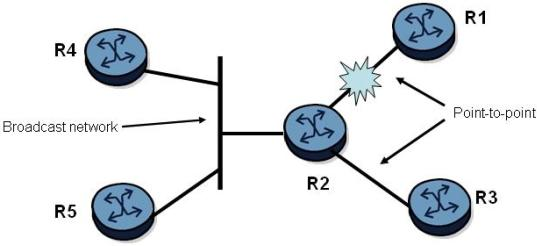

Click on the exhibit.

OSPF router R2 has both point-to-point and broadcast interfaces and it is not a DR for any interfaces. Router R2 detects the link failure between itself and router R1.

Which of the following is correct?

ARouter R2 sends an update to 224.0.0.5 on its broadcast and point-to-point interfaces. The DR does not send any updates.

BRouter R2 sends an update to 244.0.0.5 on its point-to-point interfaces. The DR sends an update to 224.0.0.6 on the broadcast network.

CRouter R2 sends an update to 224.0.0.5 out its point-to-point interfaces and an update to 224.0.0.6 out its broadcast interface. The DR sends updates to 224.0.0.5 on the broadcast network.

DRouter R2 sends an update to 224.0.0.6 out its point-to-point interfaces and an update to 224.0.0.5 out its broadcast interface. The DR sends an update to 224.0.0.6 on the broadcast networks.

Show Suggested Answer

Suggested Answer: C
