NetApp Exam NS0-181 Topic 2 Question 4 Discussion

Actual exam question for NetApp's NS0-181 exam

Question #: 4
Topic #: 2

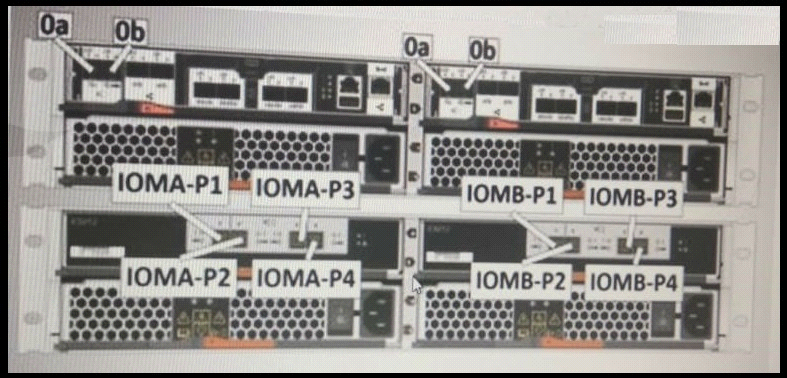

Select the Exhibit tab.

You install a new FAS2650 HA with a DS224C disk shelf and ONTAP 9.1 on a customer site.

Referring to the exhibit, which two statements describe what is required to get an HA cabled system? (Choose two.)

AInsert a cable from left controller port 0a to IOMA port 2, and from port 0b to IOMB port 4, then cable the out-of-band ACP.

BInsert a cable from right controller port 0a to IOMB port 2, and from port 0b to IOMA port 4, then cable the out-of-band ACP.

CInsert a cable from left controller port 0a to IOMB port 1, and from port 0b to IOMA port 3.

DInsert a cable from right controller port 0a to IOMA port 1, and from port 0b to IOMB port 3.

Show Suggested Answer

Suggested Answer: A, D
