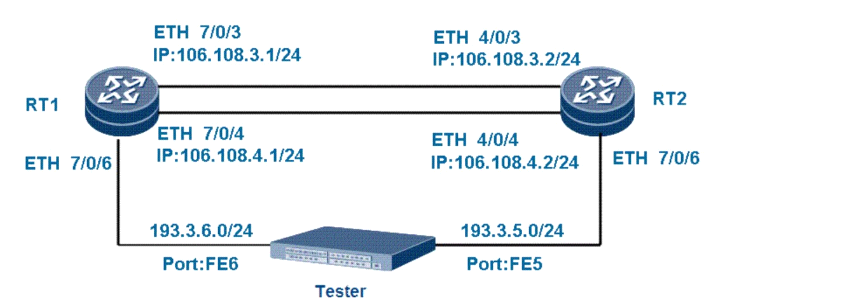

As shown in the figure, IGP is configured on RT 1 and RT 2, and route 193.3.6.0/24 is configured on RT 2. Which of the following statements is correct? Suppose OSPF is used here. Configure an access control list (ACL) on RT 2 in system mode.
ACL 2000
rule 5 permit source 193.3.6.0 0.0.0.255
Configure a routing policy in system mode:
route-policy t permit node 1
if-match acl 2000
apply backup-nexthop 106.108.4.1
apply backup-interface Ethernet4/0/4
Configure the IP FRR in system mode:
ip frr route-policy tConfigure the ethe4/0/4 interface of RT 2:
ospf cost 100
Configure BFD on RT 2:
Enable BFD on Ethernet4/0/3
bfd b1 bind peer-ip 106.108.3.1 interface Ethernet4/0/3
discriminator local 1
discriminator remote 1
min-tx-interval 10
min-rx-interval 10
process-pst
commit
Configuration on RT 1:
Enable BFD on Ethernet7/0/3
bfd b1 bind peer-ip 106.108.3.2 interface Ethernet7/0/3
discriminator local 1
discriminator remote 1
min-tx-interval 10
min-rx-interval 10
process-pst
commit
