Huawei Exam H31-161 Topic 1 Question 61 Discussion

Actual exam question for Huawei's H31-161 exam

Question #: 61
Topic #: 1

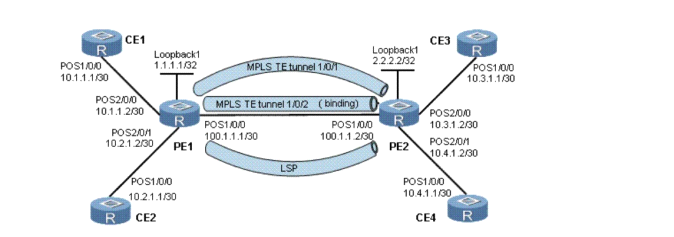

Refer to the exhibit.

This figure shows the MPLS L3VPN networking. CE 1 and CE 3 belong to VPN

ACE 2 and CE 4 belong to VPN B. Two MPLS TE tunnels (5 Mbit/s and 10 Mbit/s) and an LSP tunnel are set up between PE 1 and PE 2.It is expected that a tunnel policy is configured on PE
1 to distribute traffic in the three tunnels and MPLS TE tunnels are preferred. Configurations on PE
1:
Configuration of PE 1
#
sysname PE1
#
ip vpn-instance vpna
route-distinguisher 100:1
tnl-policy policy1
vpn-target 111:1 export-extcommunity
vpn-target 111:1 import-extcommunity
#
ip vpn-instance vpnb
route-distinguisher 100:2
tnl-policy policy2
vpn-target 222:2 export-extcommunity
vpn-target 222:2 import-extcommunity
#
mpls lsr-id 1.1.1.1
mplsmpls te
mpls rsvp-te
mpls te cspf
#
mpls ldp
#
interface Pos1/0/0
link-protocol ppp
ip address 100.1.1.1 255.255.255.252
mpls
mpls te
mpls te max-link-bandwidth 20000
mpls te max-reservable-bandwidth 15000
mpls rsvp-te
mpls ldp
#
interface Pos2/0/0
link-protocol ppp
ip binding vpn-instance vpna
ip address 10.1.1.2 255.255.255.252
#
interface Pos2/0/1
link-protocol ppp
ip binding vpn-instance vpnb
ip address 10.2.1.2 255.255.255.252
#
interface LoopBack1
ip address 1.1.1.1 255.255.255.255
#
interface Tunnel1/0/1
ip address unnumbered interface LoopBack1
tunnel-protocol mpls te
destination 2.2.2.2
mpls te tunnel-id 11
mpls te bandwidth bc0 5000
mpls te commit
#
interface Tunnel1/0/2
ip address unnumbered interface LoopBack1
tunnel-protocol mpls te
destination 2.2.2.2mpls te tunnel-id 22
mpls te bandwidth bc0 10000
mpls te reserved-for-binding
mpls te commit
#
bgp 100
peer 2.2.2.2 as-number 100
peer 2.2.2.2 connect-interface LoopBack1
#
ipv4-family unicast
undo synchronization
peer 2.2.2.2 enable
#
ipv4-family vpnv
policy vpn-target
peer 2.2.2.2 enable
#
ipv4-family vpn-instance vpna
import-route direct
#
ipv4-family vpn-instance vpnb
import-route direct
#
ospf 1
opaque-capability enable
area 0.0.0.0
network 100.1.1.0 0.0.0.3
network 1.1.1.1 0.0.0.0
mpls-te enable
#
tunnel-policy policy1
tunnel binding destination 2.2.2.2 te Tunnel1/0/2
#
tunnel-policy policy2
tunnel select-seq cr-lsp lsp load-balance-number 3
#
returnUnder the preceding configurations, traffic cannot be distributed to the three tunnels. To
implement load balancing, which of the following modifications are correct?

ADelete policy 1 from PE 1.

BDelete policy 1 in the vpna instance view.

CCreate a TE tunnel to 2.2.2.2 on PE 1.

DCreate a GRE tunnel to 2.2.2.2 on PE 1.

Show Suggested Answer

Suggested Answer: A, A, C
