Huawei Exam H12-322 Topic 1 Question 45 Discussion

Actual exam question for Huawei's H12-322 exam

Question #: 45
Topic #: 1

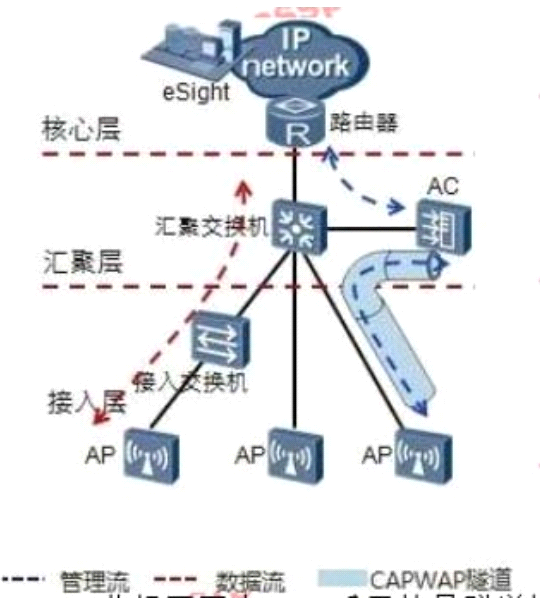

The following figure is a typical WLAN networking diagram. Which of the following is correct about this figure?

AIn the network diagram, the AP uses the tunnel forwarding mode. In the tunnel forwarding mode, the wireless user service data is also encapsulated in the CAPWAP tunnel.
The intermediate port is forwarded between the AP and the AC. The port number of the tunnel is UDP 5246.

BThere are two types of tunnels for tunnel forwarding: control tunnels and service tunnels. Signal packets are controlled by tunnels and data packets are taken from service tunnels.

CThe management data of the AP in the tunnel forwarding mode must be encapsulated in the tunnel of the CAPWAP protocol, and the data traffic of the AP can be encapsulated in
In a CAPWAP tunnel, it may not be encapsulated in a CAPWAP tunnel.

DThe advantage of tunnel forwarding is that the data flow and the management flow all pass through the AC, which makes it easier to implement security control policies for wireless users.

Show Suggested Answer

Suggested Answer: B, D

by Merissa at May 07, 2022, 10:37 PM
