Huawei Exam H12-211 Topic 6 Question 34 Discussion

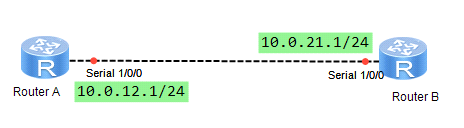

As Shown in the following figure, the switch configuration information is as follows. Which of the following statement about the network and configuration is/are true?

Router A

aaa

local-user test password cipher test local-user test service-type ppp

#

interface Serial1/0/0 link-protocol ppp

ppp authentication-mode chap

ppp pap local-user test1 password cipher test1

ip address 10.0.12.1 255.255.255.0

#

Router B

aaa

local-user test1 password cipher test1 local-user test1 service-type ppp

#

interface Serial1/0/0 link-protocol ppp

ppp authentication-mode pap

ppp chap user test

ppp chap password cipher test

ip address 10.0.12.12 255.255.255.0
