HP Exam HPE2-W09 Topic 5 Question 24 Discussion

Actual exam question for HP's HPE2-W09 exam
Question #: 24
Topic #: 5
[All HPE2-W09 Questions]

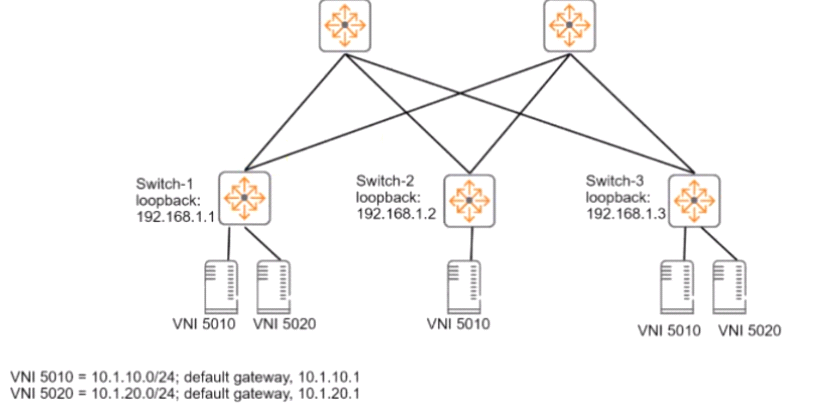

Refer to the exhibit.

You need to set up an ArubaOS-CX switch to implement Virtual Extensible LAN (VXLAN) WITHOUT Ethernet VPN (EVPN). The exhibit Indicates which servers should be part of the same VXLANs and the desired VNls for the VXLANs. Assume that the network is already configured to permit each ArubaOS-CX switch to reach each other switch's loopback interface.

Is this part of the process for setting up VXLAN to meet the requirements?

Solution: On Switch-1, set 192.168.1.3 as a peer IP address in the VNI 5020 context.

Show Suggested Answer Hide Answer
Suggested Answer: B

Contribute your Thoughts:

Currently there are no comments in this discussion, be the first to comment!
