Fortinet Exam NSE7_PBC-6.4 Topic 4 Question 17 Discussion

Actual exam question for Fortinet's NSE7_PBC-6.4 exam

Question #: 17
Topic #: 4

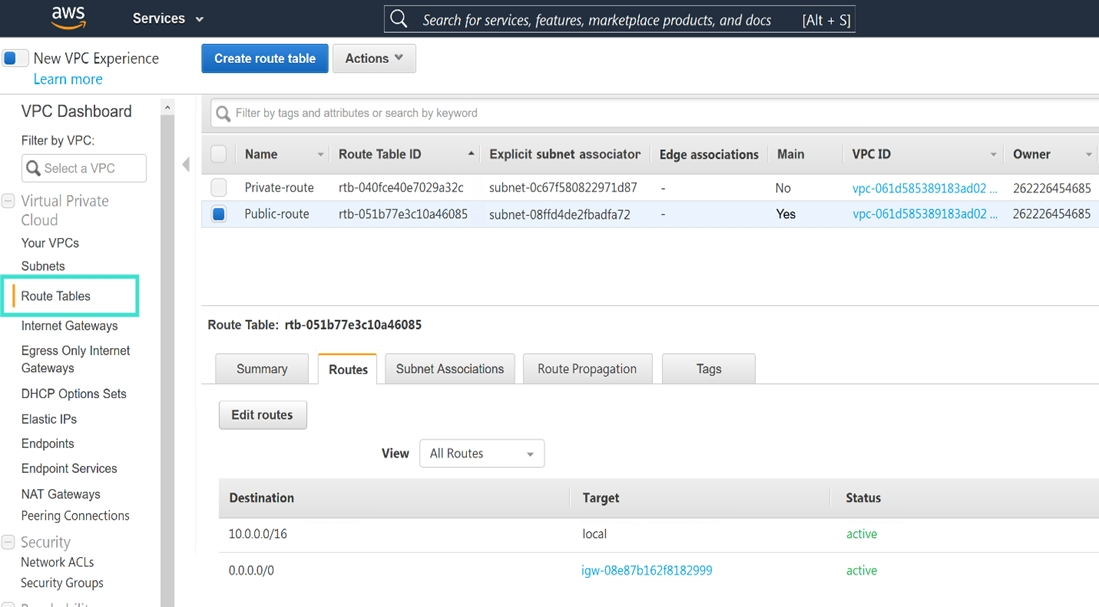

Refer to the exhibit.

In your Amazon Web Services (AWS) virtual private cloud (VPC), you must allow outbound access to the internet and upgrade software on an EC2 instance, without using a NAT instance. This specific EC2 instance is running in a private subnet: 10.0.1.0/24.

Also, you must ensure that the EC2 instance source IP address is not exposed to the public internet. There are two subnets in this VPC in the same availability zone, named public (10.0.0.0/24) and private (10.0.1.0/24).

How do you achieve this outcome with minimum configuration?

ADeploy a NAT gateway with an EIP in the private subnet, edit the public main routing table, and change the destination route 0.0.0.0/0 to the target NAT gateway.

BDeploy a NAT gateway with an EIP in the public subnet, edit route tables, select Public-route, and delete the route destination 10.0.0.0/16 to target local.

CDeploy a NAT gateway with an EIP in the private subnet, edit route tables, select Private-route, and add a new route destination 0.0.0.0/0 to the target internet gateway.

DDeploy a NAT gateway with an EIP in the public subnet, edit route tables, select Private-route and add a new route destination 0.0.0.0/0 to target the NAT gateway.

Show Suggested Answer

Suggested Answer: C

by Levi at May 31, 2022, 04:00 PM

Limited Time Offer

25%

Off

Get Premium NSE7_PBC-6.4 Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

Submit Cancel

Currently there are no comments in this discussion, be the first to comment!
