Fortinet Exam NSE7_EFW-7.0 Topic 1 Question 3 Discussion

Actual exam question for Fortinet's NSE7_EFW-7.0 exam

Question #: 3
Topic #: 1

Exhibits:

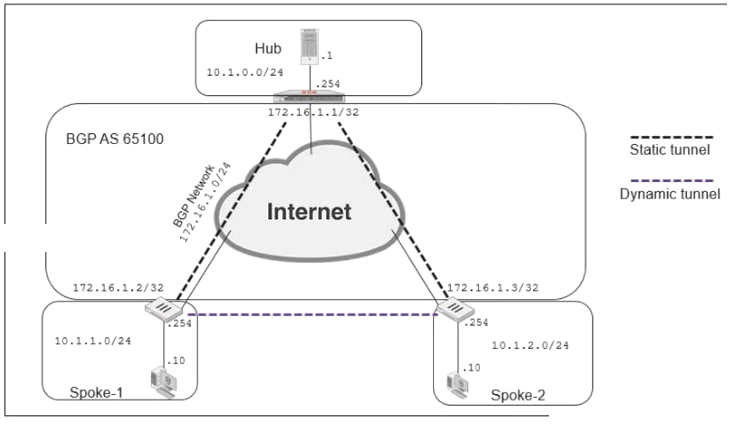

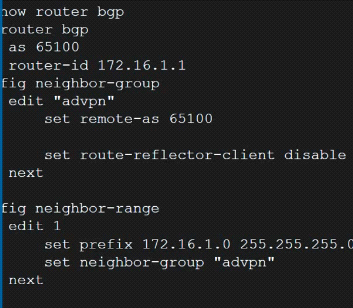

Refer to the exhibits, which contain the network topology and BGP configuration for a hub.

An administrator is trying to configure ADVPN with a hub-spoke VPN setup using iBGP. All the VPNs are up and connected to the hub. The hub is receiving route information from both spokes over iBGP; however, the spokes are not receiving route information from each other.

What change must the administrator make to the hub BGP configuration so that the routes learned by one spoke are forwarded to the other spokes?

AConfigure an individual neighbor and remove neighbor-range configuration.

BConfigure the hub as a route reflector client.

CChange the router id to 10.1.0.254.

DMake the configuration of remote-as different from the configuration of local-as.

Show Suggested Answer

Suggested Answer: B

by Sue at Nov 16, 2022, 10:13 PM

Limited Time Offer

25%

Off

Get Premium NSE7_EFW-7.0 Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

Submit Cancel

Currently there are no comments in this discussion, be the first to comment!
