Dell EMC Exam DEA-41T1 Topic 7 Question 5 Discussion

Actual exam question for Dell EMC's DEA-41T1 exam

Question #: 5
Topic #: 7

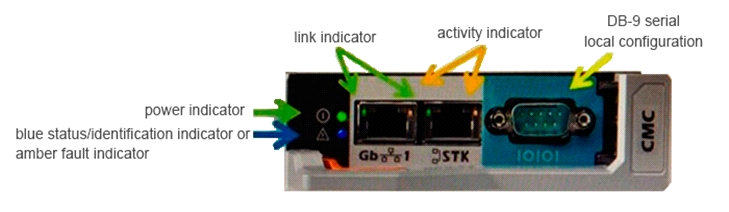

Refer to the exhibit.

An administrator has a standalone M1000e chassis with only a single CMC module. The CAT6 cable is plugged into the Ethernet port closest to the DB-9 connector. The power indicator light is lit but the administrator is unable to access the CMC module.

What could be the cause of this issue?

ANo DB-9 cable is plugged in

BCMC module was removed without powering of the chassis

CCAT6 cable plugged into the king port

DCAT5 cable required for connection to CMC
Explanation
Each CMC has two RJ-45 Ethernet ports, labeled GB (the uplink port) and STK (the stacking or cable consolidation port). With basic cabling, you can connect the GB port to the management network and leave the STK port unused.CAUTION: Connecting the STK port to the management network can have unpredictable results. Cabling GB and STK to the same network (broadcast domain) can cause a broadcast storm.
https://topics-cdn.dell.com/pdf/poweredge-m1000e_owners-manual_en-us.pdf

Show Suggested Answer

Suggested Answer: C
